Models and Specifications

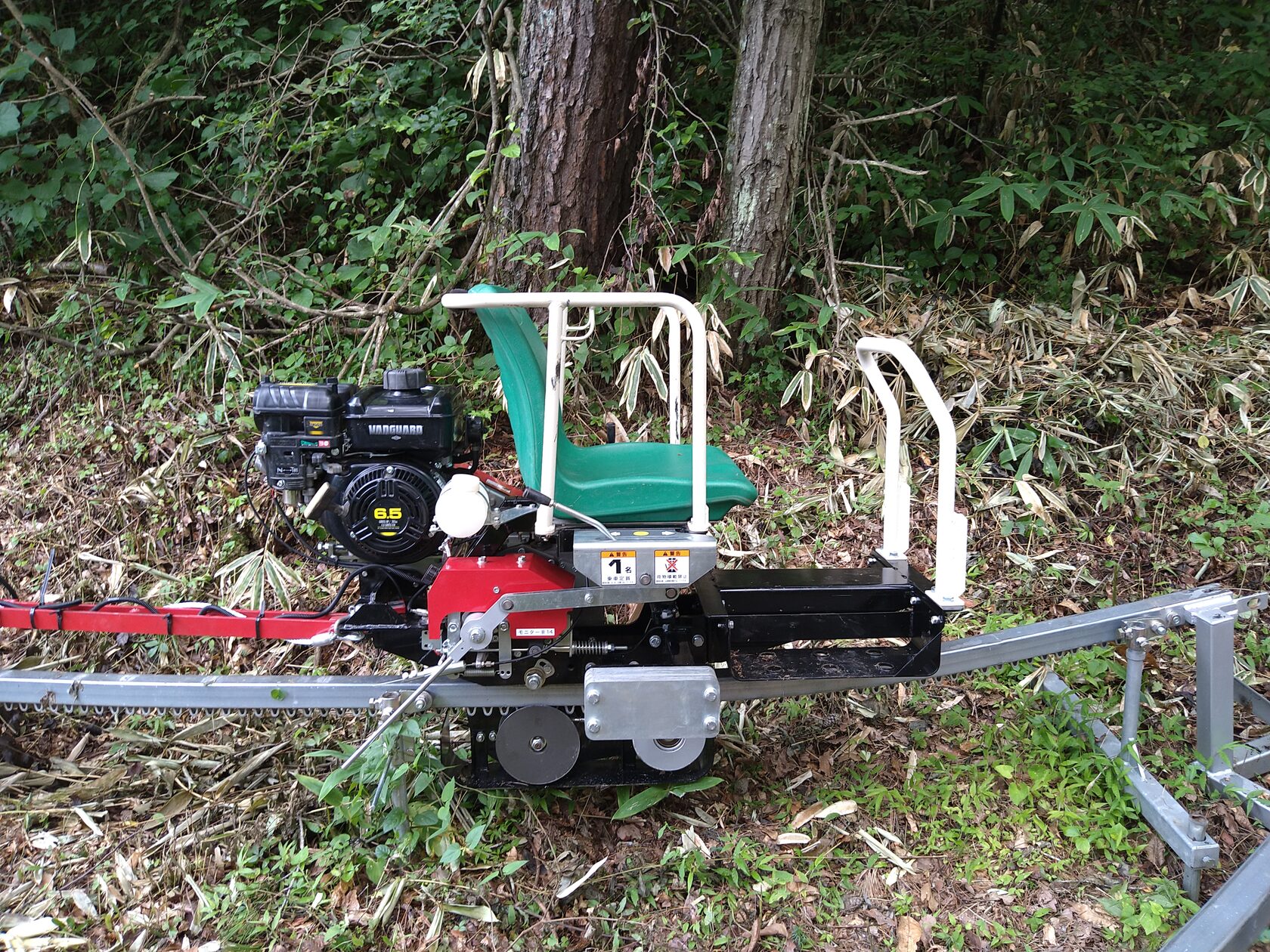

Monorail M300MSL with self-starter and auto leveling
Model:
M300MSL
Carrying capacity:
300 kg
L x W x H (mm):
1050x630x910
Weight:
147 kg
Overview
Tractor M300MSL carrying loads up to 300 kg.
Complete with a fire prevention device gasoline engine.
Has self-starter and auto leveling system.
Speed 44 m/min with maximum inclination angle 45°.
MonorailM300M
Model:
M300M
Carrying capacity:
300 kg
L x W x H (mm):
910x530x740
Weight:
98 kg
Overview
Carrying loads up to 300 kg Tractor M300M.
Complete with a fire prevention device gasoline engine.
Speed 44 m/min with maximum inclination angle 45°.
MonorailM600HSB
Model:
M600HSB
Carrying capacity
500 kg
L x W x H (mm):
995x630x875
Weight:
155 kg
Overview
Tractor M600HSB carrying loads up to 500 kg.
Complete with fire prevention device gasoline engine.
Has horn, engine hour meter, headlight and patrol light.
Speed 44 m/min with maximum inclination angle 45°.
Monorail MF200 + Freight Car FT200
Model:
MF200+FT200
Carrying capacity:
200 kg
L x W x H (mm):
3100x550x800
Weight:
approx. 180 kg
Overview
Mainly used for:
Agriculture and forest industry (wood, equipment carrying).
Farm business, vineyard.
Civil engineering (construction materials carrying).

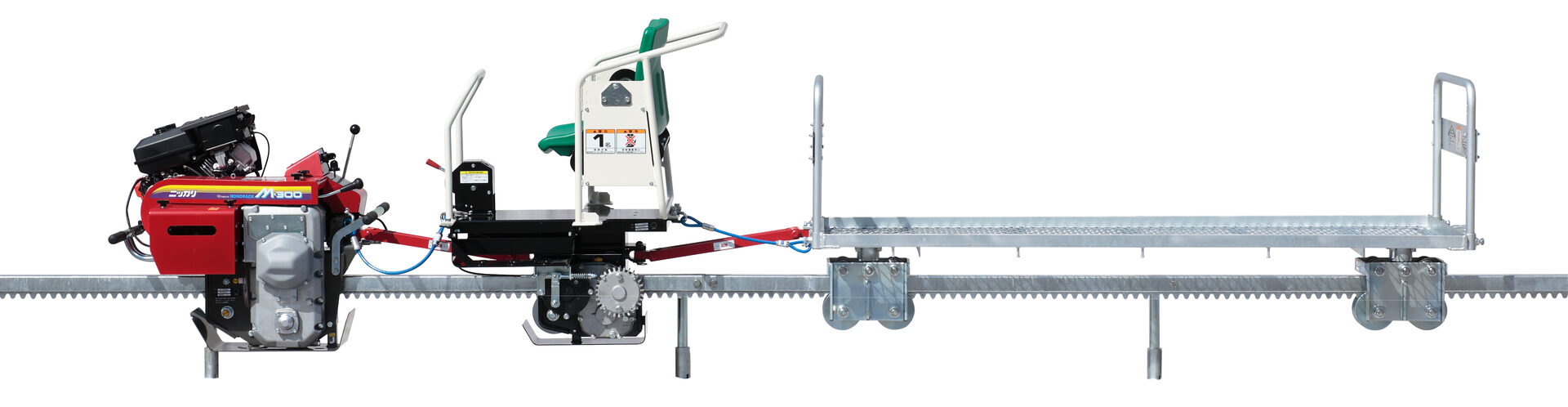

Monorail M300M + Passanger car OP1 + Freight car T200
Model:
M300M+OP1+ T200
Carrying capacity:
300 kg
L x W x H (mm):
4440x630x980
Weight:
approx. 250 kg
Overview
A simple model that is commonly used in:
Farm business, vineyard.
Civil engineering (construction materials carrying).
Various kinds of equipment transportation.
Monorail MJ-200B-OP1

Model

MJ-200B-OP1

Size

Overall length

1230x640x960

Overall width

Overall

height (mm)

Weight (kg)

166

Driving

Speed(m/min)

41

performance

Maximum

45°

climbing

angle(°)

Engine

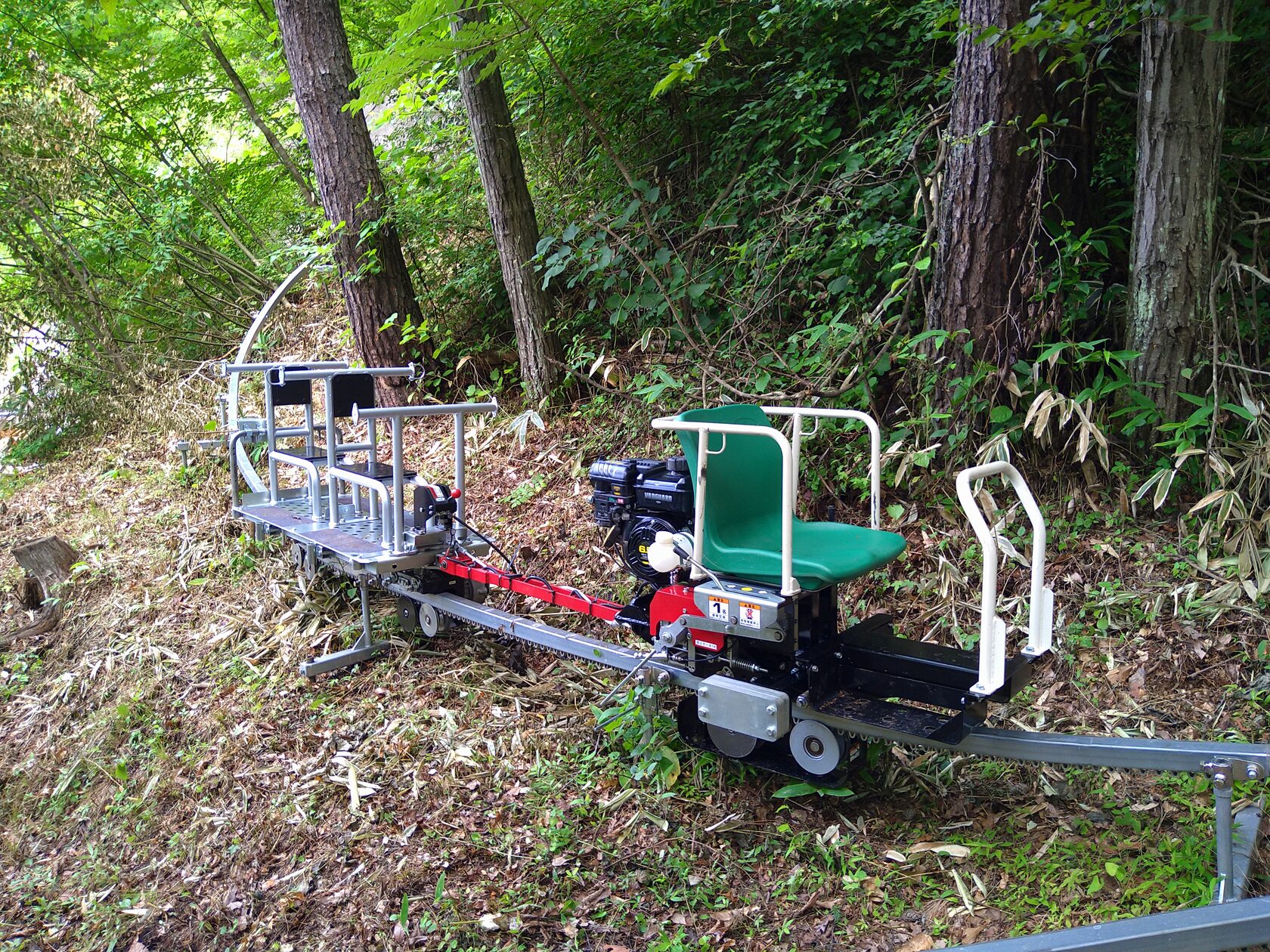

Monorail M300MSL + Passenger car OP3
Model:
M300MSL+OP3
Carrying capacity:
300 kg
L x W x H (mm):
3670x685x1095
Weight:
approx. 285 kg
Overview
Mainly used for:
Carrying workers.
Monorail MB-500MSL + Passenger car OP-3 + Passenger car OP-2
Model:
MB-500MSL+ OP-3+OP-2
Carrying capacity:
5 passengers
L x W x H (mm):
6195x700x1095
Weight:
Not specified
Overview
Mainly used for:
Workforce and small size luggage transportation.
Monorail M1000HS + Passenger car OP-1-1000
Model:
M1000HS+ OP-1-1000
Carrying capacity:
1000 kg
L x W x H (mm):
4940x1220x1250
Weight:
approx. 680 kg
Overview
Mainly used for:
Transportation of heavy and oversized equipment.
Workforce transportation.
Carrying civil engineering construction materials.
Passanger car OP1
Model:
OP1
Carrying capacity:
1 passenger
L x W x H (mm):
890x610x990
Weight:
  1. g
Overview
Universal seat for one driver.
Suspended type: lilting forward by 10° and backward by 20° against horizontality.
Can be used with different types of tractors, which carrying capacity from 300 kg to 1000 kg.
Freight car T-200A
Model:
T-200A
Carrying capacity:
200 kg
L x W x H (mm):
2080x560x800
Weight:
  1. kg
Overview
*T-300A is also in stock with maximum carrying capacity 300 kg.
Core Box car TD-1
Model:
TD-1-50
Carrying capacity:
500 kg
L x W x H (mm):
2160x680x600
Weight:
Overview
*TD-1-60 is also in stock.
Freight car TC-08
Model:
TC-08
Carrying capacity:
0.08 m³
L x W x H (mm):
980x880x880
Weight:
130 kg
Bucket car TC-20A
Model:
TC-20A
Carrying capacity:
0.2 m³
L x W x H (mm):
1690x890x1128
Weight:
172 kg
Freight car TC-40-1000
Model:
TC-40
Carrying capacity:
0,2 m³ x 2
L x W x H (mm):
Not specified
Weight:
Not specified

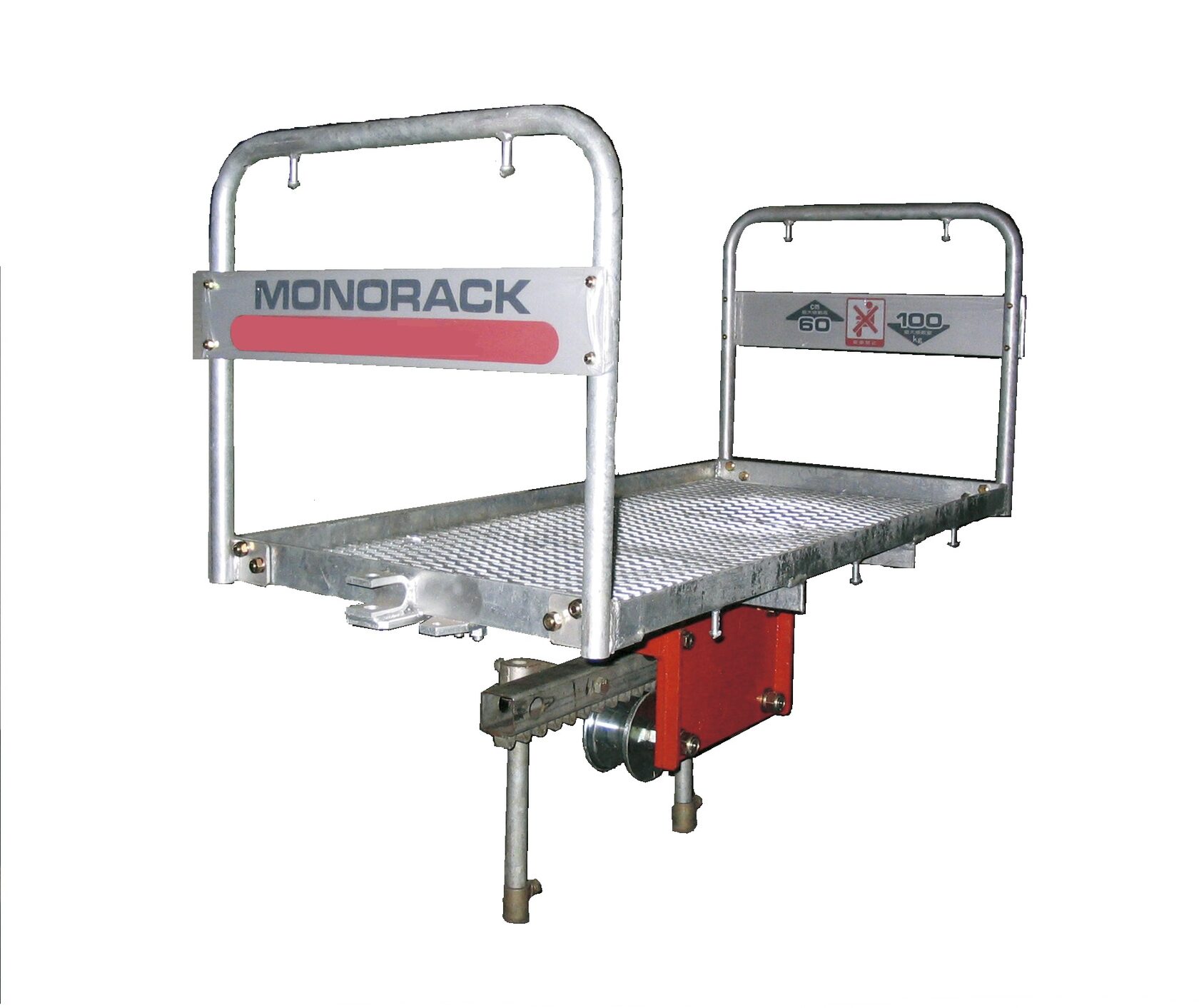

Freight Car T - 10A
Model:
T-10A
Carrying capacity:
100 kg
L x W x H (mm):
1300x570x820
Weight:
49 kg

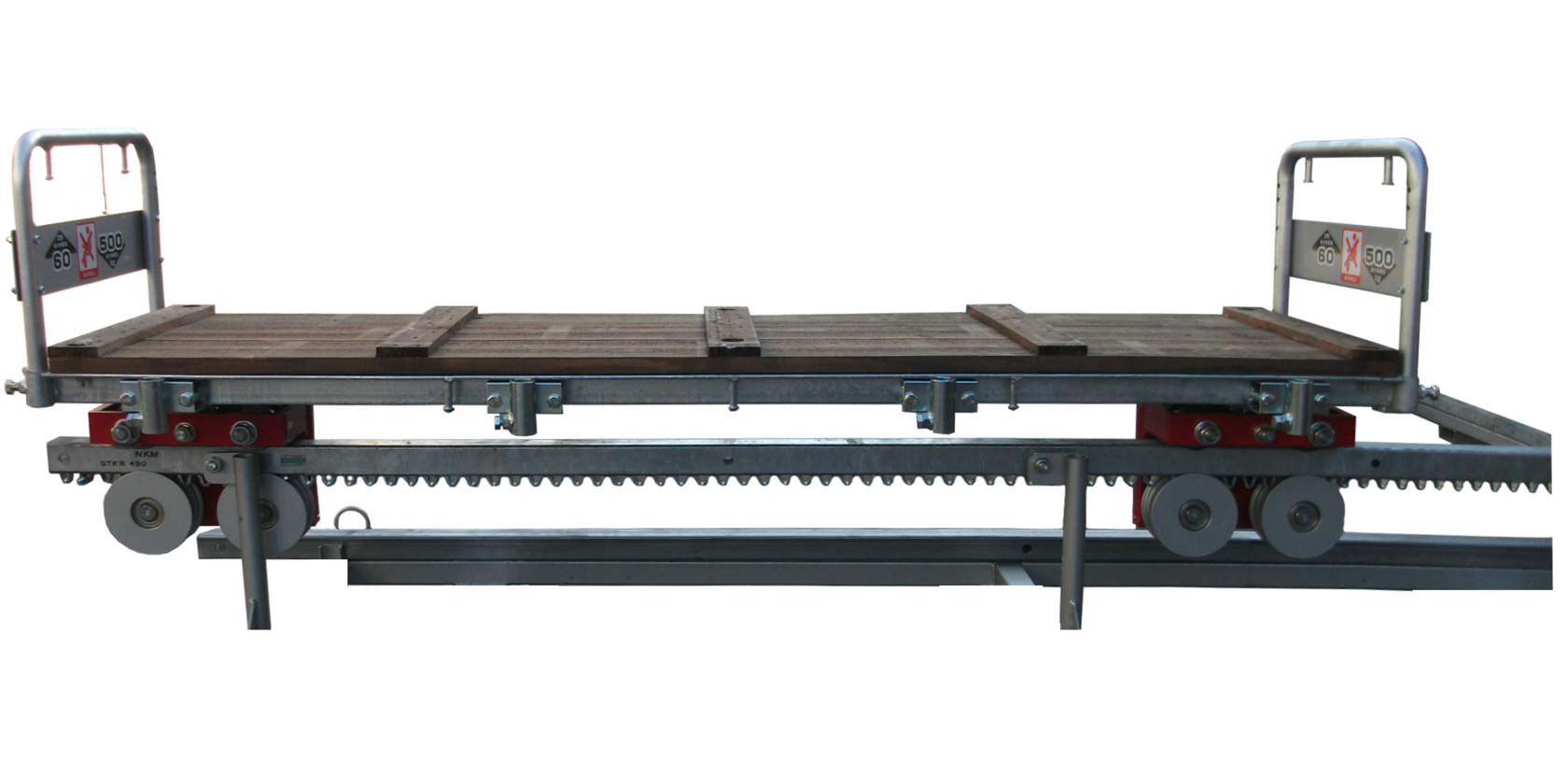

Freight car T5B-50
Model:
T5B-50
Carrying capacity:
500 kg
L x W x H (mm):
Not specified
Weight:
Not specified
Overview
With or without back side.
*Freight car T5B-60 is also in stock

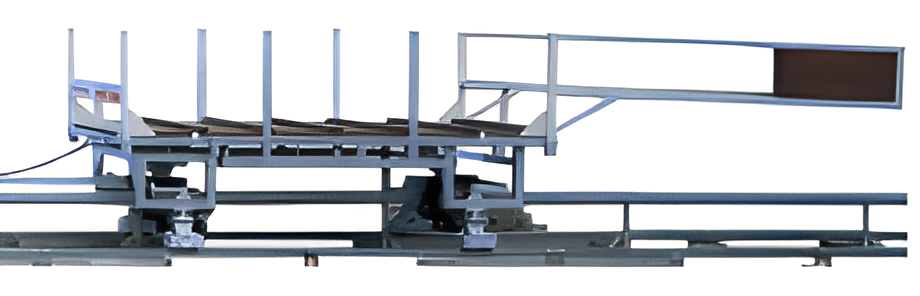

Freight car T8-1000 for long size materials
Model:
T8-1000
Carrying capacity:
1000 kg
L x W x H (mm):
Max length 6000 mm
Weight:
Not specified
Overview
Used for carrying long size materials such as pipes, rails ets.

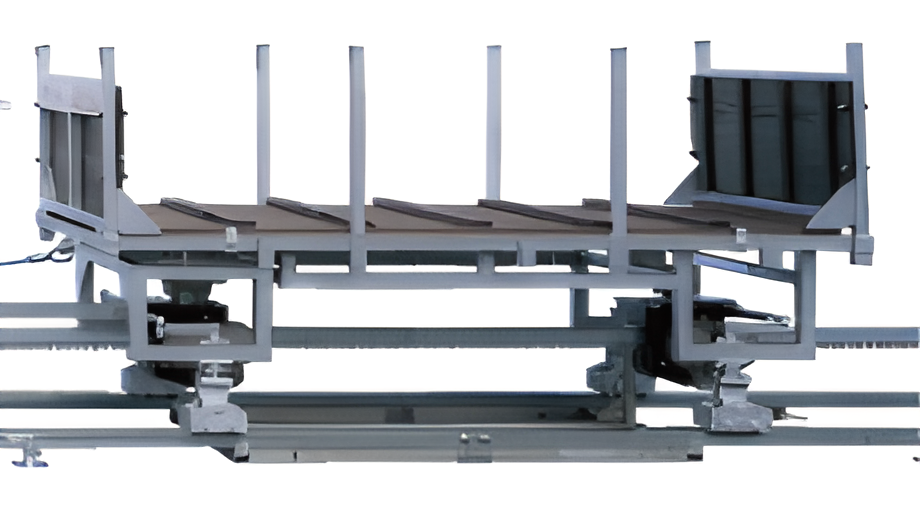

Freight car T-1000
Model:
T-1000
Carrying capacity:
1000 kg/45° 1500 kg/30°
L x W x H (mm):
2500x1189x1195
Weight:
Overview
Used for carrying oversized materials and equipment. Has centrifugal brake (Downhill).

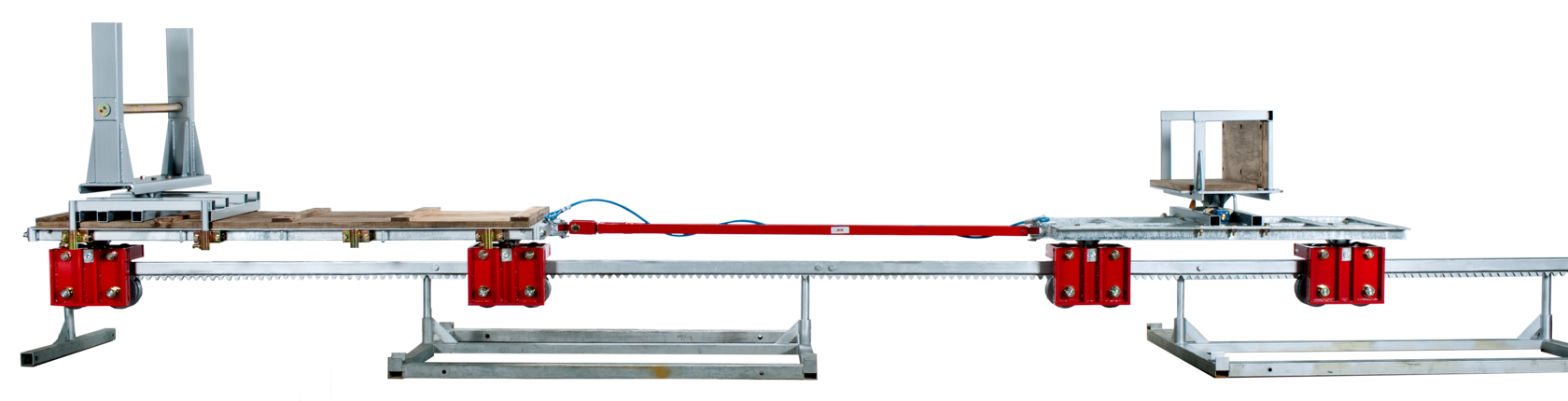

Freight car TA-500L-50 for long size materials
Model:
TA-500L
Carrying capacity:
500 kg
L x W x H (mm):
3350-4400x 710x860
Weight:
Overview
Used for carrying long size materials such as pipes, rails ets.
*TA-500L-60 is also in stock (Weight 222 kg).

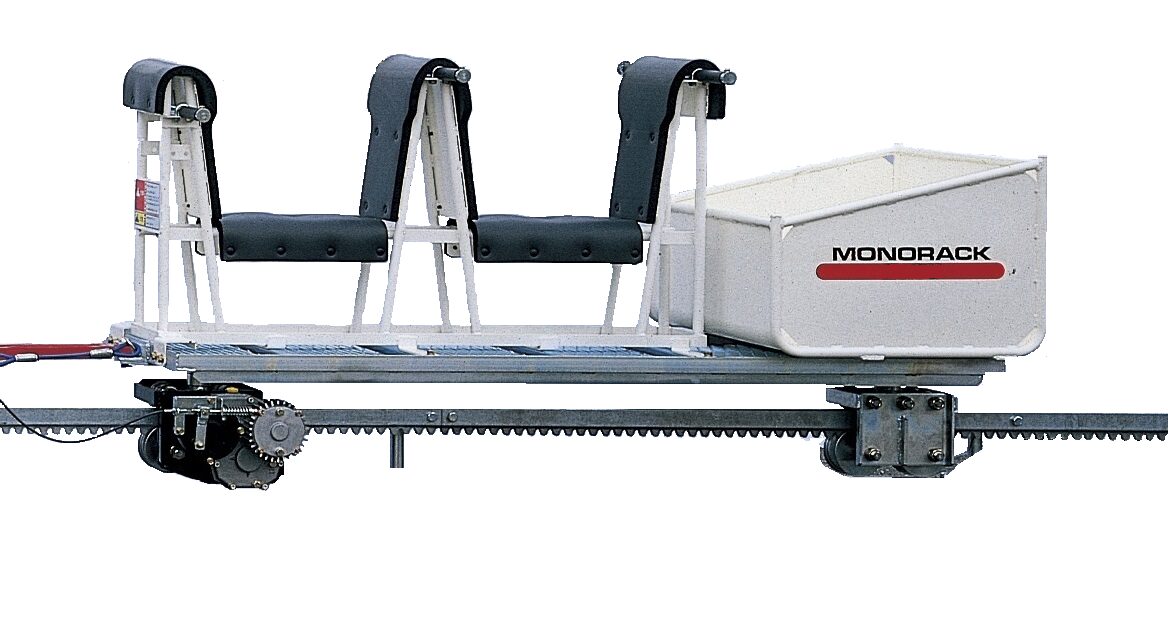

Passenger Car OP2
Model:
OP2 (OPA-2)
Carrying capacity:
2 passengers + 80 kg
L x W x H (mm):
980x880x880
Weight:
Not specified
Overview
Two seats passenger car mainly used for workforce transportation.

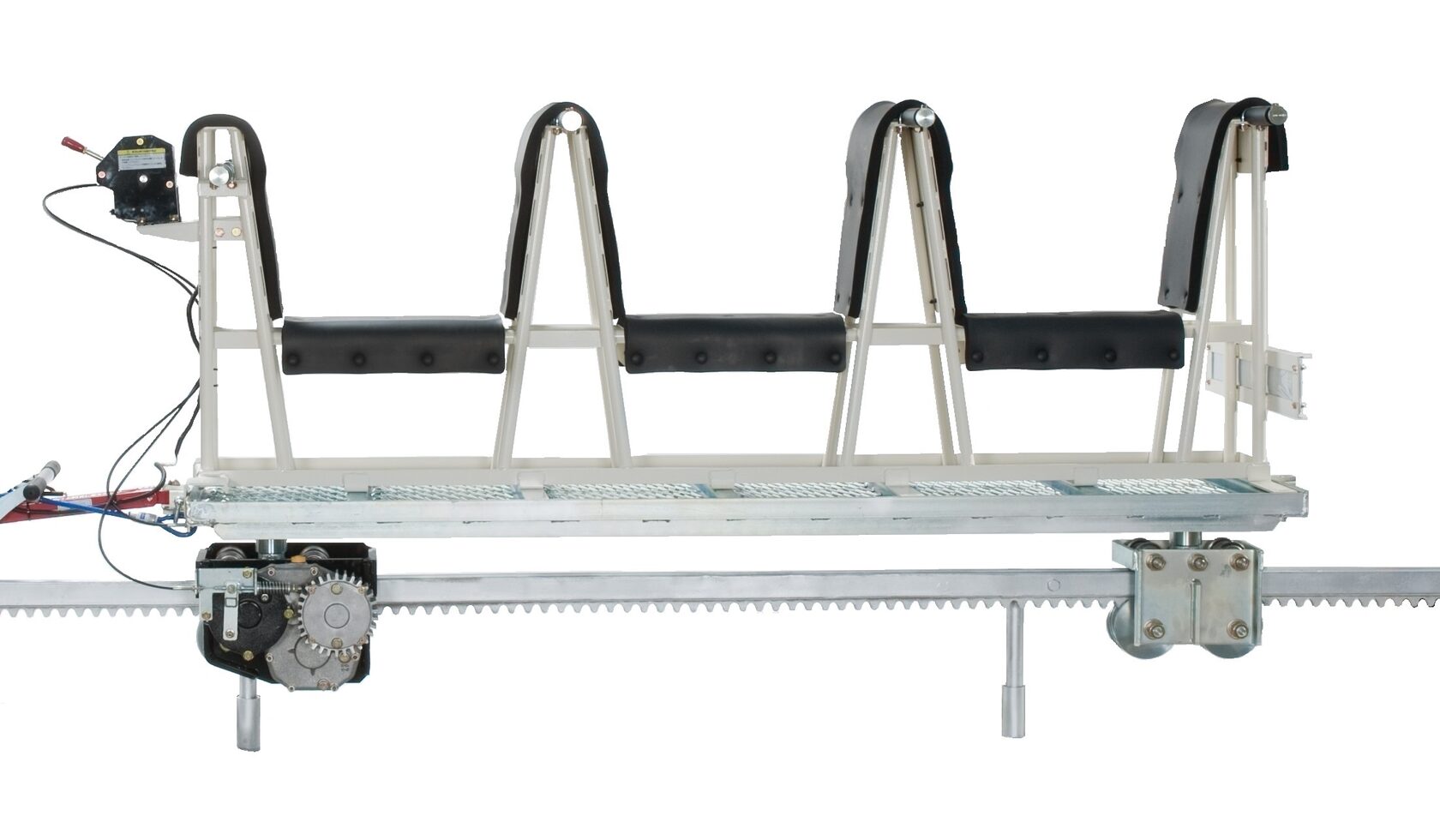

Passenger Car OP3
Model:
OP3
Carrying capacity:
3 passengers
L x W x H (mm):
2420x560x1070
Weight:
Overview
Three seats passenger car mainly used for workforce transportation

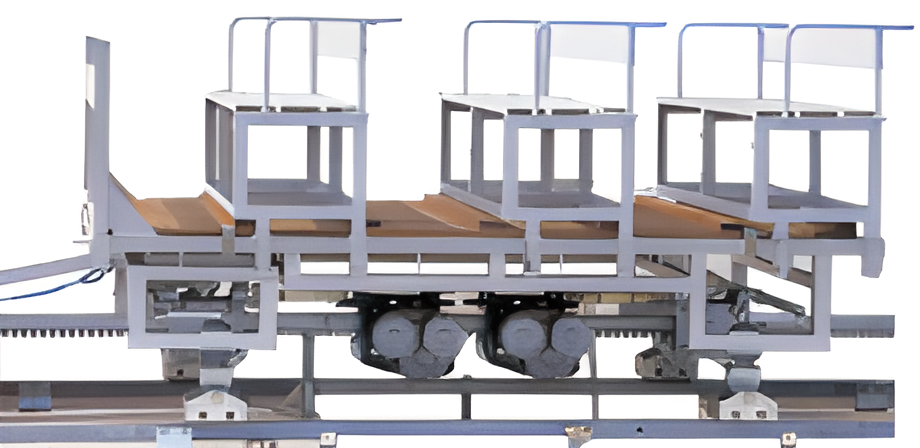

Passenger car OP-9-1000
Model:
OP-9
Carrying capacity:
1000 kg (9 passengers)
L x W x H (mm):
Not specified
Weight:
Not specified
